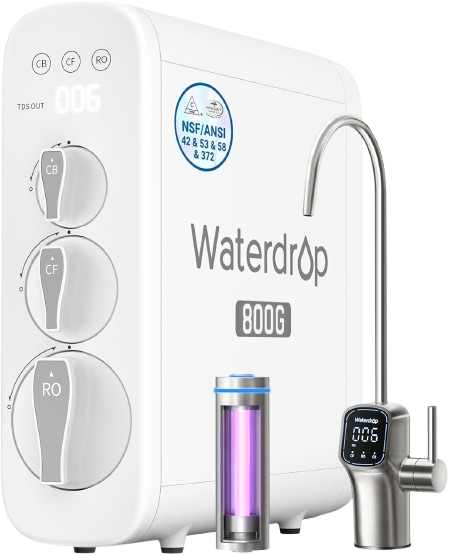

The Waterdrop G3P800 is a high-performance tankless RO system designed for fast, on-demand output, but its real value depends on your household’s daily volume and long-term maintenance budget. It fills a standard 8 Oz glass in about five seconds with its 800 GPD flow rate, a common problem in smaller units. Beyond speed, its most important 2026 feature is integrated UV sterilization for protection against microbes that standard membranes may miss. The upfront cost is higher than that of the G3P600, but still, 3:2 is an industry-leading 3:2. It is one of the cleanest and most economical options for large families with a 1:2 pure-to-drain ratio.
| Feature | Specification |
| Output Rate | 800 Gallons Per Day (GPD) |
| Drain Ratio | 3:1 (Pure to Waste) |
| Certifications | NSF/ANSI 42, 53, 58, and 372 |
| Filtration Stages | 10-Stage Composite + UV LED |
| Filter Lifespan | 6–12 months (CF/CB) to 2 years (RO) |
| Annual Filter Cost | Approximately $160 |
| Price Range | $800 – $999 |
What Does the Waterdrop G3P800 Actually Remove From Water?
The Waterdrop G3P800 removes chlorine, lead, fluoride, arsenic, and PFAS while significantly reducing Total Dissolved Solids (TDS), but it is important to distinguish between marketing claims and official certifications. In the water filtration industry, a system “tested” by a lab is not the same as one that carries a formal NSF/ANSI certification for a specific contaminant.
Certified vs. Lab-Tested Removals
The G3P800 holds formal NSF/ANSI 58 certification for TDS reduction and NSF/ANSI 53 certification for health-related contaminants like lead and chromium-6. It is also certified for aesthetic reasons, such as chlorine taste and odor under NSF/ANS 42. Beyond these certifications, independent 2026 lab tests, including Tap Score panels, have shown the system can reduce “forever chemicals” (PFAS) with reports of “Not Detected” for 14 typical PFAS analyses.
Contaminant Removal Overview
| Contaminant | Removal Method | Certification Status |
| Lead & Heavy Metals | RO Membrane | NSF 53 Certified |
| TDS (Salts/Minerals) | RO Membrane | NSF 58 Certified |
| Chlorine & VOCs | CF/CB Carbon Filters | NSF 42/53 Certified |
| PFAS (PFOA/PFOS) | 10-Stage Composite | Lab-Verified (SGS/IAPMO) |
| Bacteria & Viruses | UV LED + RO | Lab-Verified (99.9%) |
| Fluoride & Arsenic | RO Membrane | Lab-Verified |
While the 0.0001 micron RO membrane physically blocks most impurities, the UV LED sterilizer adds value to the G3P800 over the G3P600 and makes the G3P800 stand out from the crowd. The UV light kills bacteria and viruses that occasionally bypass a membrane or grow in the tap lines over time. It is a complete barrier; like all RO systems, it does not remove “everything.” It was not built for heavy silt/high-iron well water with no pretreatment.
How Does the G3P800 Filtration System Actually Work Step-by-Step?
The Waterdrop G3P800 uses a sophisticated 10-stage process, but you won’t see 10 separate filters under your sink. Instead, the system uses three physical cartridges with multiple internal layers, followed by an automated UV sterilization stage. This composite design allows the system to remain tankless and compact while maintaining the high pressure required for an 800 GPD flow rate.
The 3-Cartridge Breakdown
Filter 1: The CF (Composite Filter)
This is the pre-treatment stage. It uses a 2-in-1 design featuring sediment PP, cotton, and an activated carbon block. Its job is to physically block large particles like rust and sand while chemically reducing chlorine to prevent damage to the delicate RO membrane in the next step.
Filter 2: The RO (Reverse Osmosis) Filter
This is the core of the system, housing a 16-layer DOW® composite membrane. With a pore size of 0.0001 microns, it acts as a microscopic wall, stripping away up to 99% of dissolved solids (TDS), heavy metals like lead and arsenic, and “forever chemicals” (PFAS).
Filter 3: The CB (Carbon Block) Filter
The final physical stage uses high-precision activated carbon made from natural coconut shells. This “polishing” filter removes any residual tastes or odors, ensuring the water has a crisp, neutral finish.
The Final Kill Stage: UV LED Sterilization
Unlike the G3P600, the G3P800 includes a UV LED light that activates automatically as water flows to the faucet. This 10th stage targets 99.9% of bacteria and viruses. It is an “invisible” safety net that ensures the internal waterways remain microbiologically clean without adding any chemicals to your water.
How Fast is the 800 GPD Flow Rate in Real-World Use?
The “800 GPD” rating translates to a flow rate of approximately 0.56 gallons per minute (GPM), which is significantly faster than the standard municipal RO systems of the past. In a real-world kitchen setting, this rating means you are no longer dealing with the “trickle” typical of under-sink filters; the Waterdrop G3P800 delivers water at a speed that rivals a standard refrigerator dispenser.
The “Stopwatch” Test
Under optimal conditions (77°F water and 60 PSI), you can expect the following performance:
- 8 oz Glass of Water: Approximately 5–6 seconds.
- 16oz Water Bottle: Approximately 11–12 seconds.
- 1-Gallon Cooking Pot: Approximately 1.8 to 2 minutes.
Variables That Slow You Down
It is important to remember that 800 GPD is the maximum theoretical output. In a typical 2026 home, two factors will likely reduce this speed:
- Water Temperature
If your winter tap water drops to 50°F, the RO membrane becomes less permeable, and your flow rate can drop by as much as 30–50%.
- Feed Pressure
The G3P800 has an internal pump to boost pressure, but if your home’s baseline pressure is below 14.5 PSI, the system will struggle to hit its 6-second-per-glass benchmark.
For most families, this speed strikes a balance, allowing them to fill a coffee reservoir or pasta pot without frustration, while avoiding the extreme cost and footprint of light-commercial 1200+ GPD units.
Is the 3:1 Drain Ratio Real or Just a Marketing Claim?
The 3:1 pure-to-drain ratio is one of the G3P800’s strongest selling points, and under optimal laboratory conditions (77°F water, 30–60 PSI, and standard municipal TDS), it is a verified fact. This makes it roughly 900% more efficient than traditional tank-based RO systems, which often waste 3 gallons of water for every 1 gallon produced. However, in a real-world 2026 home, this ratio is a “peak” figure rather than a constant reality.
RO Efficiency
Your actual water savings will fluctuate based on the physical environment of your plumbing:
- The Temperature Factor
RO membranes are highly sensitive to cold. If your winter tap water drops significantly, the water becomes “thicker” at a molecular level, requiring more force to pass through the membrane. This naturally increases the wastewater flow, potentially dropping your ratio to 2:1 or even 1:1.
- Pressure Dependency
The G3P800 uses an internal pump to maintain efficiency, but if your home’s baseline pressure is extremely low (under 15 PSI), the system has to work harder, leading to more “rejected” water going down the drain.
Auto-Flush Cycles
What the marketing misses is the auto-flush cycle. To avoid scaling the 800 GPD membrane due to minerals, the system flushes itself with water every few hours of use or when it is first turned on. And while this water is “wasted,” mechanical necessity dictates the filters will last the 24 months they are supposed to. Even after accounting for these cycles, the G3P 800 remains one of the most water-efficient methods available today for obtaining high-purity RO water.
What Does It Cost to Own and Maintain the G3P800 Long Term?
The Waterdrop G3P800 carries a premium upfront cost of roughly $800–$999, making it a significant investment compared to standard RO systems. Beyond the initial purchase, 2026’s average annual maintenance costs approximately $160. Figure 3 shows the three-filter rotation necessary to maintain an 800 GPD flow rate/UV sterilization effectiveness.
The 5-Year Cost Breakdown
- Initial Investment: ~$850 (System, smart faucet, and first filter set).
- Annual Filter Costs: You will replace the CF filter ($30) every 6 months and the CB filter ($30) every 12 months.
- Bi-Annual RO Cost: The specialized G3P800 RO membrane ($140) requires replacement every 24 months.
- Total 5-Year Estimate: Approximately $1,650.
These proprietary twist-and-pull filters are more expensive than universal 10-inch cartridges, but you get 3-second maintenance and a much lower water bill because of the 3:2 system. 1 drain ratio. For most families, the system remains a massive financial win over bottled water, which can cost upwards of $4,000 over the same five-year period.
Is the Waterdrop G3P800 Easy to Install and Maintain?
Installation of the Waterdrop G3P800 is marketed as a “30-minute DIY” project, but in a real-world setting, the complexity depends entirely on your existing plumbing and cabinetry. Although the system employs an integrated waterway design to reduce leak risk compared to conventional multi-tubing units, there are three “friction points” where DIYers tend to stall.
Installation
- The Power Requirement
Unlike traditional RO systems, which operate on water pressure alone, the G3P 800 is a motorized, tankless unit. You need an electrical outlet under your sink to power the internal pump and UV sterilization light. In the absence of one, hire an electrician before beginning.
- Drilling the Sink
The smart faucet requires drilling a 1-inch hole in your counter or sink. Although Waterdrop provides a sticker template, drilling through granite, quartz or thick porcelain requires specialized diamond-core bits and a steady hand.
- Drain Connection
You will need to drill a 1/4-inch hole into your vertical drain pipe to install the “drain saddle.” If your plumbing is cramped or uses non-standard piping, the installation can be the most frustrating step.
Maintenance
Where the G3P800 truly excels is in its long-term maintenance. It features a “twist-and-pull” design that allows you to replace cartridges without turning off your main water supply or using any tools.
- Filter Swaps: The CF and CB filters take roughly 3 seconds to replace.
- Smart Monitoring: You don’t need to track dates; the smart faucet ring turns from blue to red when a filter is spent, and the front panel provides a digital countdown of remaining filter life.
If you have a power outlet and don’t mind a drill, the G3P800 is a weekend project that first-timers will probably take 60-90 minutes for. It is the simplest RO system to maintain once installed.

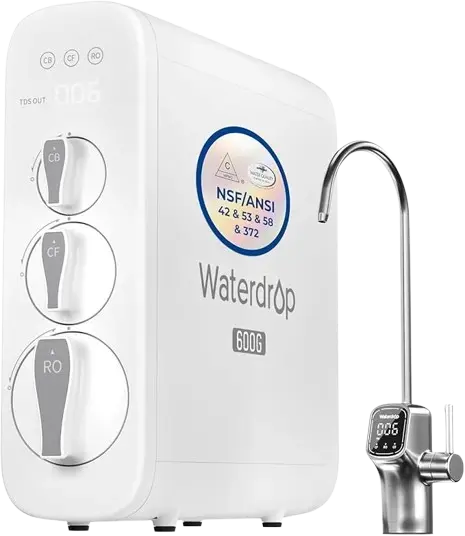

Which is Better: G3P800 vs. G3P600 vs. X12?
Flow speed, water efficiency, and typical RO water taste are trade-offs between Waterdrop’s top models. The G3P800 is for most families the “sweet spot,” the G3P600 for smaller, budget households, and the X12 for those wanting the fastest flow with integrated remineralization.
Quick Comparison Table
| Feature | G3P600 | G3P800 | Waterdrop X12 |
| Flow Rate | 600 GPD | 800 GPD | 1200 GPD |
| 8oz Fill Time | ~8 Seconds | ~6 Seconds | ~3 Seconds |
| Pure-to-Drain Ratio | 2:1 | 3:1 | 3:1 |
| UV Sterilization | No | Yes (LED) | Yes (LED) |
| Remineralization | No | No | Yes (Integrated) |
| Annual Filter Cost | ~$120 | ~$160 | ~$175 |
Which One Should You Buy?
- Buy the G3P600 if:
You are a 1–2 person household with moderate water needs. It offers the same core filtration technology at a much lower entry price. If you don’t mind waiting a few extra seconds for your glass to fill, it is the most space-efficient and cost-effective entry point into tankless RO.
- Buy the G3P800 if:
You have a family of four or more and care about water waste. The 3:1 drain ratio significantly improves upon the 600 model, and the UV sterilization offers reassurance against bacteria. It is the best “all-rounder” for 2026, balancing speed and sustainability.
- Buy the Waterdrop X12 if
You want a system that mimics a standard kitchen tap’s speed. At 1200 GPD, it is nearly twice as fast as the 600. More importantly, it is the only model in this lineup that includes integrated alkaline remineralization, solving the “flat taste” issue without needing an external add-on filter.
Who Should Actually Buy the Waterdrop G3P800 (and Who Should Skip It)?
The Waterdrop G3P800 is a powerhouse of efficiency, but its premium price tag means it isn’t the right fit for every kitchen. Here is the direct verdict for four common buyer profiles.
Profile 1 — The High-Demand Family (4+ people)
BUY IT
If you’re frustrated with the slow “trickle” of entry-level filters when filling pasta pots or multiple water bottles, the 800 GPD flow rate is a significant improvement. The 3:1 drain ratio also ensures you aren’t sending massive amounts of water down the drain during peak usage.
Profile 2 — The Budget-Conscious Renter
SKIP IT
The $800+ investment and the requirement to drill a faucet hole make this a poor choice for temporary living. Instead, look at a “plug-and-play” countertop unit that requires zero plumbing.
Profile 3 — The Unfiltered Well Water User
PROCEED WITH CAUTION
While the UV sterilization is great for biological safety, raw well water will destroy the G3P800’s membrane with sediment and iron. Only buy the G3P800 if you have a dedicated whole-house pre-filtration system already in place.
Profile 4 — The Tech-Focused Homeowner
BUY IT
If you want a “smart” kitchen, the G3P800’s LED faucet and real-time TDS monitoring are the best in the industry. It offers a sleek, tankless aesthetic that fits perfectly in modern, minimalist cabinets.
Does RO Water Taste Different Without Remineralization?
Yes, reverse osmosis water often has a “flat” or slightly clinical taste because the process strips away the alkaline minerals like calcium and magnesium that give natural spring water its character. With no remineralization, the water is technically pure but may have a lower pH that some perceive as a metallic or sour note. Adding a remineralization stage is an optional way to restore a crisp, refreshing flavor profile and to even out the alkalinity of the water.
Does the Waterdrop G3P800 Include Remineralization, and Does It Matter?
No, the standard Waterdrop G3P800 does not include a remineralization filter; it is designed to produce high-purity, “zero-mineral” water. While the system provides excellent filtration performance, the lack of minerals primarily affects the taste & mouthfeel of the water, not its safety. Should you prefer mineral water, you can add an external remineralization filter, such as the Waterdrop MNW, between the system and the faucet.
How Accurate is the Built-in TDS Meter on the G3P800?
The built-in TDS meter gives an accurate total dissolved solids estimate in parts per million ppm but is a conductivity measure only and not total water safety. This demonstrates the reduction of dissolved salts and minerals, indicating how well the RO membrane is performing. It cannot, however, detect non-conductive threats such as bacteria, viruses, or some pesticides and should be considered a performance indicator of the filter and not a full safety guarantee.
What Are the Most Common Problems Reported with the G3P800?
The most common problems reported are vibration noise from the internal pump during high demand and initial installation friction regarding the 1-inch hole for the smart faucet. Other users report greater wastewater ratios than 3:1 due to low inlet water pressure/freezing source water, respectively. They are typically resolved by placing the system on a level surface to reduce noise and by confirming home water pressure is at least 14.5 PSI.
Can the Waterdrop G3P800 Be Connected to a Refrigerator or Ice Maker?
Yes, the G3P800 can be connected to a refrigerator or ice maker, but it requires a separate 1/4″ or 3/8″ tubing connection kit that is not included in the standard box. It’s a tankless system, so the water pressure at the fridge dispenser may be lower than you’d get with a tank system. You may also need an additional pressure tank if your refrigerator is farther than 10-15 feet from the RO unit to keep the ice maker from overflowing.
