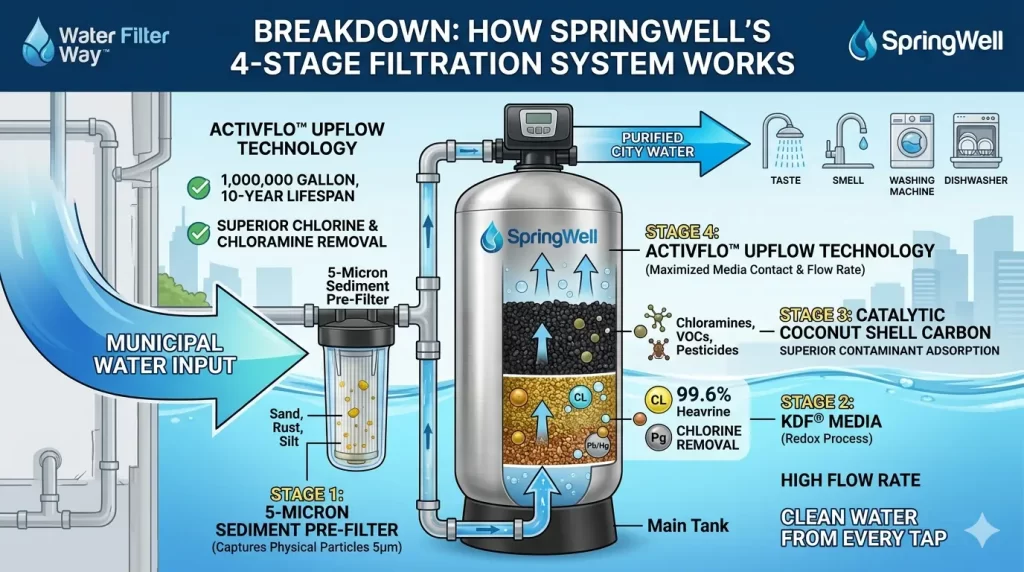

SpringWell’s whole-house filtration system uses a special ActivFlo™ technology. It has a carefully designed four-stage process that uses high-quality filter media and a smart flow pattern. This helps your water stay in contact with the filters longer, making it cleaner while keeping strong water pressure in your home.
This advanced design works through four distinct layers to ensure every drop of water is cleaned effectively:
- Stage 1: The 5-Micron Sediment Pre-Filter
- Stage 2: KDF® Media (Kinetic Degradation Fluxion)
- Stage 3: Catalytic Coconut Shell Carbon
- Stage 4: SpringWell’s ActivFlo™ Upflow Technology
This layered approach is important because it provides a step-by-step defense that 2-stage and 3-stage filters cannot match. By dedicating the second stage to destroying chlorine, the system protects the expensive carbon media from wearing out. This separation allows the carbon to focus on removing stubborn contaminants like Chloramines and VOCs, which gives the SpringWell system its superior contaminant removal rates and a class-leading 10-year lifespan.
Choosing the right SpringWell water filter means aligning the system’s capabilities with your home’s unique water issues. To decide if this 4-stage system is right for you, you need to know your water source and your flow needs. We at Water Filter Way offer detailed, unbiased guides and comparisons to help you confidently determine if the SpringWell 4-stage whole-house filter system is the perfect water solution for your family.
Stage 1: The 5-Micron Sediment Pre-Filter
This stage acts as the physical guard for the entire system. Installed first on the main water line, this small housing holds a replaceable filter cartridge rated at 5 microns. This rating means the filter acts like a super-fine sieve, capable of capturing physical particles.
This first step is essential because it shields the specialized media in the main tank. By removing the large debris upfront, the sediment filter prevents the more expensive KDF and carbon layers from becoming prematurely clogged or damaged. This protection is vital for guaranteeing the system’s long-term performance.
Here is how this stage works:
- Hard water enters the system first.
- The water flows through the 5-micron cartridge.
- The filter physically traps larger particles, such as sand, dirt, rust flakes, and silt (5 microns or larger).
- Cleaned water exits this pre-filter and flows toward the main tank.
The cartridge is the only part in this stage that requires routine maintenance, needing a simple replacement every 6 to 9 months. This routine, inexpensive step is the easiest way to ensure the primary filter media lasts for its full 10-year guarantee.
Stage 2: KDF® Media
Once the water is free of sediment from Stage 1, it enters the large main tank and immediately flows into the KDF (Kinetic Degradation Fluxion) media. This stage uses high-purity granules made from a copper-zinc alloy. KDF works through a powerful chemical process called Redox (Reduction-Oxidation), where it transfers electrons to contaminants, transforming them into harmless forms.
KDF is exceptionally effective at removing chlorine (up to 99.6%), the harsh chemical that causes bad taste and odor in city water. It also actively targets and converts heavy metals like lead and mercury, plating them onto the media’s surface.
Here is how this stage works:
- Sediment-free water flows into the KDF layer.
- The Redox reaction begins, neutralizing chlorine instantly.
- Heavy metals are converted and trapped on the media’s surface.
- Chlorine-free water exits this layer, ready for the next stage.
The KDF’s removal of chlorine prevents that chemical from quickly destroying the carbon media in Stage 3. This protection against chemical wear is what makes SpringWell’s 10-year filter life possible, offering unmatched durability against municipal water treatments.
Stage 3: Catalytic Coconut Shell Carbon
After passing through the KDF layer, the water moves through the largest section of media, the Catalytic Activated Carbon layer. This carbon is derived from coconut shells. It provides a high surface area, enabling adsorption (chemicals adhere to the carbon’s surface). The “catalytic” treatment enhances this process, making the carbon highly specialized at removing complex and persistent chemicals.
This stage effectively scrubs the water clean of substances that affect taste and long-term health. This final cleansing step ensures your water tastes crisp, smells clean, and is free of the most common synthetic chemicals found in municipal supplies.
Here is how this stage works:
- Chlorine-free water flows through the highly porous catalytic carbon.
- Contaminants like Chloramines, VOCs, pesticides, and THMs stick to the carbon’s surface (adsorption).
- Purified, great-tasting water exits this layer.
The use of high-grade catalytic carbon, instead of cheaper standard carbon, is vital here. It gives the system the power to break the bonds of chloramine, a disinfectant that standard filters often miss. This ensures comprehensive removal of both common and difficult chemicals, providing superior water quality compared to basic filter systems.
Stage 4: SpringWell’s ActivFlo™ Upflow Technology
The final stage is not a media type but the unique engineering of the system’s flow. SpringWell uses an Upflow Technology design, which forces the water to enter the bottom of the tank and travel upwards through all the layers. This is different from traditional systems that push water straight down.
This upward flow ensures that water contacts and interacts with all the KDF and carbon media, preventing shortcuts or “channeling” that could bypass treatment.
Here is how this stage works:
- The system engineering ensures that water pressure pushes the incoming water up through the filter media beds.
- The water spends the maximum possible time in contact with the KDF and Carbon layers.
- This maximized contact time allows for the highest possible contaminant removal rates.
- Purified water leaves the top of the tank, ready for use in your home.
This smart design is foundational to SpringWell’s promise of a 1,000,000-gallon, 10-year life guarantee for the main media. The Upflow technology also contributes to the system’s high GPM flow rate, maintaining strong household pressure and enabling a good shower without sacrificing filtration.
| Stage Number | Stage Name / Technology | Main Media Used | What It Does / Removes | Key Importance |
| 1st Stop | 5-Micron Sediment Pre-Filter | Synthetic Fiber Cartridge | Physically traps sand, silt, rust, dirt (particles 5 microns). | Protects the main filter media from clogging, ensuring long life. |
| 2nd Stop | KDF® Media (Redox Process) | High-Purity Copper & Zinc Granules | Chemically converts Chlorine (>99%)and removes Lead and Mercury. | Extends carbon life, fights heavy metals and bacteria. |
| 3rd Stop | Catalytic Coconut Shell Carbon | Specially Treated Activated Carbon | Adsorbs Chloramines, VOCs, Pesticides, THMs, bad tastes/odors. | Provides clean, great-tasting, chemical-free water. |
| 4th Stop | ActivFlo™ Upflow Technology | Tank Design & Media Bed | Ensures maximum water-to-media contact for the highest removal efficiency. | Guarantees 1,000,000-gallon, 10-year media lifespan and high flow. |

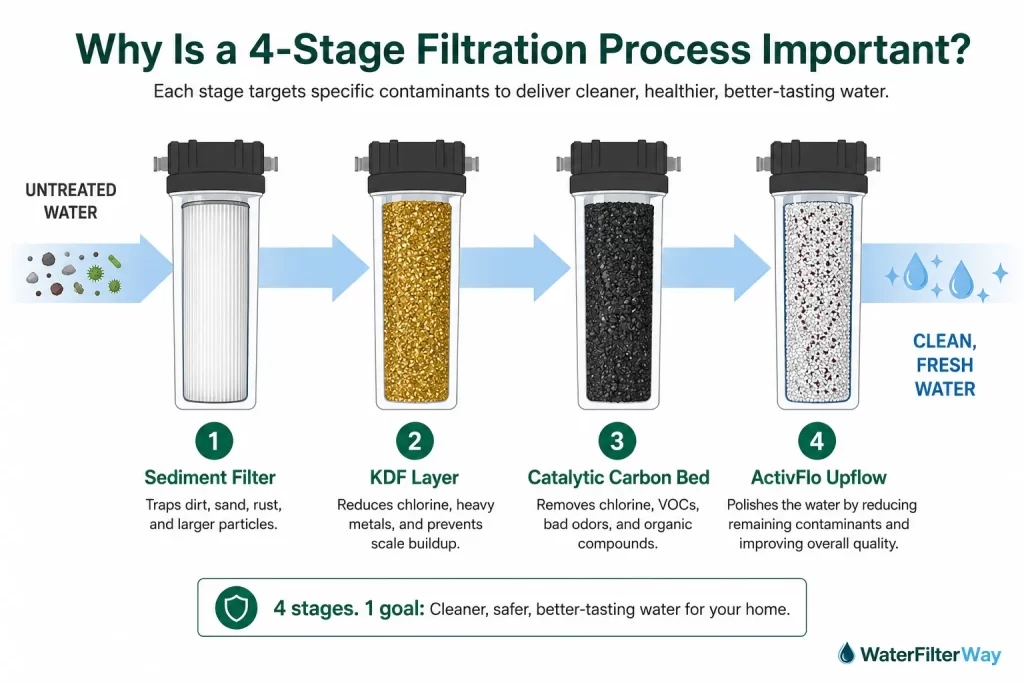

Why Is a 4-Stage Filtration Process Important?
A 4-stage filtration process is important because it delivers a layered, step-by-step cleaning that removes more contaminants and ensures the system itself lasts longer.
The key reasons a 4-stage filtration process is essential for superior whole-house water quality include:
- Extends the Filter’s Life
The first stage acts as a 5-micron security guard. This sediment filter traps large particles such as rust, dirt, and sand. Removing these large particles first keeps the expensive, specialized filter media in the main tank from clogging too quickly.
- Dedicated Chemical Attack
The second stage, KDF media, is crucial because it neutralizes harsh disinfectants, such as chlorine. Chlorine damages carbon filters over time, but removing it early protects the main carbon filter.
- Addresses Stubborn Contaminants
The third stage uses high-grade media, such as catalytic carbon. Since the chlorine has already been removed, this stage focuses entirely on breaking down difficult chemicals that basic filters miss.
- Maximizes Water-to-Media Contact
The final stage is the flow design that forces the water to pass through every tiny piece of filter media. This maximizes contact time, ensuring the water is scrubbed as clean as possible. It gives you the highest removal rates for all contaminants.
- Guarantees Comprehensive Protection
Each stage is a safety net for the next, offering a layered defense against various threats. The system moves from simple physical removal (sand) to chemical neutralization (chlorine) and then to chemical adsorption (VOCs). This layered approach ensures nearly all common contaminants are removed.
A multi-stage system like the 4-stage filter ensures that every faucet in your house provides cleaner, healthier water for your skin and hair, as well as great-tasting water, while protecting your plumbing and appliances from corrosive chemicals and sediment.
Which SpringWell System Has the 4-Stage Filtration?
The SpringWell System, with 4-stage filtration, is the Whole House Water Filter System (CF Series) and is designed specifically for city water. This line includes three sizes: CF1, CF4, and CF+, which differ primarily in their flow rate (GPM) to match homes with varying numbers of bathrooms. We will be reviewing this specific system in detail.
1. SpringWell CF Whole House Water Filter
The SpringWell CF Whole House Water Filter is a high-capacity, multi-stage filtration system specifically engineered to treat municipal (city) water. It uses a proprietary 4-stage process called ActivFlo™ Filtration Technology to remove common contaminants, including chlorine, chloramine, and other chemicals, providing clean water at every tap for up to 10 years.
SpringWell CF1 Whole House City Water Filter (Small Home)
The SpringWell CF1 is designed for small homes with 1 to 3 bathrooms. It filters up to 1,000,000 gallons of city water with a 9 GPM flow rate, keeping water pressure steady at every tap. The compact 9-inch wide by 52-inch tall tank installs easily at the main water inlet without taking much space.
The CF1 uses catalytic carbon and KDF media to reduce chlorine, bad taste, odor, and common chemicals found in municipal tap water. The filter media lasts up to 10 years, making daily maintenance very simple and affordable. Tanks and valves carry a lifetime warranty for long-term peace of mind.
Priced at $1,179, the CF1 is a smart investment for small families who want clean, fresh water from every faucet without constant upkeep.
SpringWell CF4 Whole House City Water Filter (Medium Home)
The SpringWell CF4 is built for medium-sized homes with 4 to 6 bathrooms. It filters up to 1,000,000 gallons of city water with a strong 12 GPM flow rate, so water pressure stays steady even when multiple taps run at once. The 10-inch wide by 54-inch tall tank fits neatly at the main water inlet and handles daily demand with ease.
The CF4 uses catalytic carbon and KDF media to reduce chlorine, chloramine, bad taste, odor, and common chemicals found in municipal water. The filter media lasts up to 10 years, keeping maintenance low and costs down over time. Tanks and valves carry a lifetime warranty, giving homeowners long-term peace of mind.
This system is a smart choice for growing families who want clean, fresh-tasting water at every faucet without constant filter changes or drops in water pressure.
SpringWell CF+ Whole House City Water Filter (Large Home/Commercial)
The SpringWell CF+ is built for large homes and commercial spaces with 7 or more bathrooms. It delivers an impressive 17+ GPM flow rate, ensuring strong water pressure at every tap even during peak usage. With a capacity of 1,000,000 gallons and 10-year filter media life, this system handles heavy daily demand without constant maintenance.
The CF+ uses catalytic carbon and KDF media to remove chlorine, chloramine, bad taste, odor, and harmful chemicals from city water. Its larger tank dimensions make it suitable for high-volume water use in big households or light commercial settings. Tanks and valves carry a lifetime warranty, giving long-term confidence in every drop.
Priced at $2,040, the CF+ is a premium investment for large families and businesses that need reliable, whole-house clean water every single day.
Technical Specifications
The models in the CF series are built identically but have different media volumes to handle different flow rates, ensuring no pressure drop in larger homes.
| Feature | CF1 (Small Home) | CF4 (Medium Home) | CF+ (Large Home/Commercial) |
| Ideal for | 1–3 bathrooms | 4–6 bathrooms | 7+ bathrooms |
| System Capacity | 1,000,000 gallons | 1,000,000 gallons | 1,000,000 gallons |
| Flow Rate (GPM) | 9 GPM | 12 GPM | 17+ GPM |
| Tank Dimensions | 9 inches wide x 52 inches high | 10 inches wide x 54 inches high | Larger dimensions |
| System Price (Approx) | $1,179 | $1,307 | $2,040 |
| Certifications | NA | NA | NA |
| Main Media Lifespan | 10 years | 10 years | 10 years |
| Warranty | Lifetime on tanks and valves | Lifetime on tanks and valves | Lifetime on tanks and valves |
Working Process
The SpringWell CF filter works by pushing water through three specialized media layers using an optimized flow pattern. The water first passes through the 5-micron sediment filter, shedding large particles. Next, the KDF media chemically neutralizes chlorine, protecting the final stage. The water then flows through the Catalytic Carbon, which adsorbs (binds) the remaining chemicals, such as chloramines and VOCs. The system’s unique Upflow Design ensures maximum contact time for thorough cleaning.
Contaminants Removed and Removal Range
The system is engineered to remove chemical and aesthetic contaminants commonly found in city water.
| Contaminant Group | Specific Contaminants Removed | Removal Range |
| Disinfectants | Chlorine, Chloramines | 94-97% |
| Disinfection Byproducts (DBPs) | THMs (Trihalomethanes), Haloacetic Acids | 96-98% |
| Industrial Chemicals | VOCs (Volatile Organic Compounds), Herbicides, Pesticides | High removal rate |
| Heavy Metals | Lead, Mercury | 98.95% (especially lead and cysts) |
| Aesthetics | Bad taste and odor, sulfur | Effectively eliminated |
Installation Overview
Installing the SpringWell CF system is manageable for a handy homeowner and takes several hours, but professional installation is an option if you are not comfortable with basic plumbing.
- Pre-Soak Requirement: The main tank’s media must be soaked with water for 48 hours before the system can be fully connected and used. This activates the carbon.
- Sequential Installation: The sediment pre-filter has to be installed first on the main line, followed by the main carbon/KDF tank.
- Plumbing Connection: The system connects directly to the home’s main water line using the included bypass valve and 1-inch MNPT fittings. You have to apply the plumber’s tape to all threaded PVC fittings to prevent leaks.
- Initial Flush: After installation, flush the system for about 15 to 20 minutes to clear out fine carbon dust before using the water in your home.
Certifications and Testing
The components used in the SpringWell CF system are generally certified. But the company’s website does not specify which certifications its finished systems hold.
System Cost
The SpringWell CF is priced as a premium, long-term investment, but it has minimal annual upkeep costs compared to many cartridge-based systems.
- Initial Cost: The price range for the Whole House Water Filter System (CF Series) typically starts around $1,100 for the CF1 model, increasing for the larger CF4 and CF+ units.
- Annual Maintenance Cost: The main media lasts 10 years. The only required maintenance is replacing the 5-micron sediment pre-filter every 6 to 9 months, which costs approximately $40 annually for replacement cartridges.
Summary
| What We Like | What We Don’t Like |
| 10-year media lifespan with 1,000,000-gallon capacity | 48-hour pre-soak required, which delays installation |
| No pressure drop; high flow rate (9 to 20 GPM) handles multiple fixtures easily | DIY installation can be complex and requires basic plumbing skills |
| Lifetime warranty on tank and valve | The system as a whole is not typically NSF certified for specific contaminant reduction (relies on components and third-party lab tests) |
| Dedicated KDF stage protects carbon and maximizes contaminant removal performance |
Final Verdict: Who is this System Best for?
The SpringWell CF Whole House Water Filter is the best choice for homeowners seeking a low-maintenance, long-term solution to a wide range of contaminants in city water. Its 10-year lifespan and robust 4-stage process make it highly cost-effective over time, despite the higher initial cost. This system is perfect for those seeking the highest quality filtered water from every faucet for drinking, showering, and all household uses.

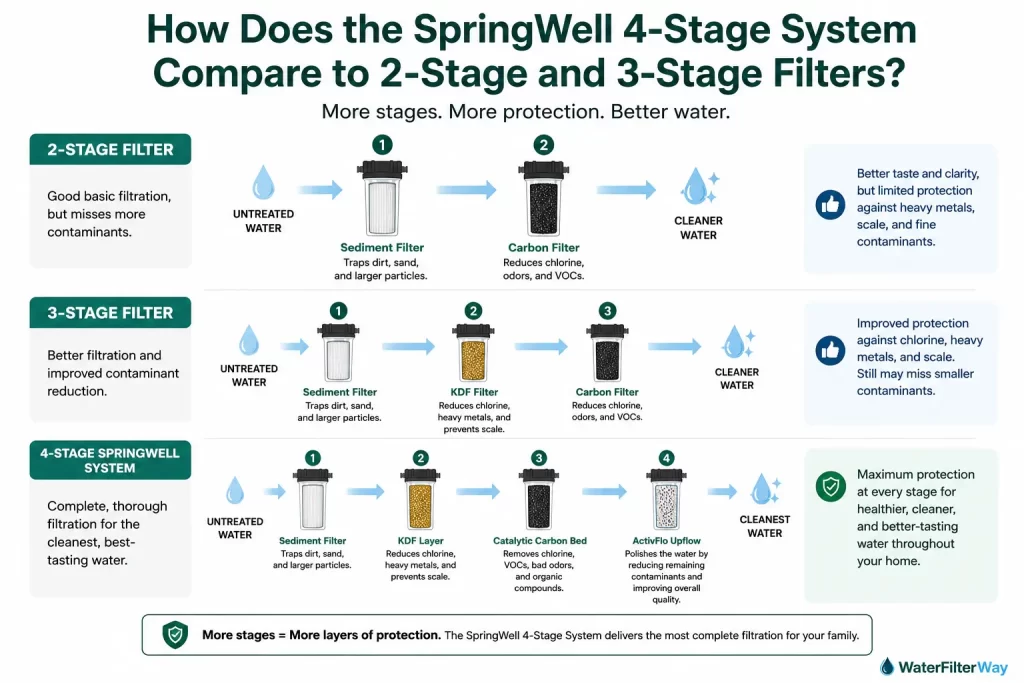

How Does the SpringWell 4-Stage System Compare to 2-Stage and 3-Stage Filters?
SpringWell’s 4-Stage system compares to 2- and 3-stage filters by providing superior protection for the media, dedicated chemical-removal stages, and an engineered flow that guarantees a longer service life and higher efficiency.
The key features and ways in which the SpringWell 4-Stage system compares to 2-stage and 3-stage filters include:
Dedicated Chlorine Protection
The biggest difference lies in how the SpringWell 4-stage system manages chlorine and chloramine, both of which degrade filter media.
- SpringWell 4-Stage: It uses a dedicated KDF (Kinetic Degradation Fluxion) media bed as the second stage. This layer removes up to 99.6% of chlorine before the water reaches the carbon, protecting the carbon media from chemical damage and extending its life.
- 2-Stage/3-Stage Filters: These systems often combine chlorine removal and contaminant filtration into a single carbon or carbon/sediment stage. The carbon absorbs chlorine, which wears it out much faster, reducing its lifespan and overall filtration performance.
Comprehensive Contaminant Targeting
The use of separate, specialized media enables the SpringWell system to handle a wider range of chemicals more effectively than systems that rely on a single carbon type.
- SpringWell 4-Stage: It uses catalytic coconut-shell carbon (Stage 3) to remove tough chemicals, including chloramines, VOCs, and pesticides. Since chlorine is already removed in Stage 2, the carbon focuses on more difficult-to-remove organic compounds, thereby improving overall purification.
- 2-Stage/3-Stage Filters: These filters typically use granular activated carbon (GAC), which works well for basic chlorine and taste issues but is less effective against persistent chloramines, PFAS, and other complex VOCs.
Filtration Efficiency and Lifespan
SpringWell’s design, which counts the ActivFlo™ Upflow Technology as its fourth stage, guarantees efficiency and dramatically extends the life of the internal media.
- SpringWell 4-Stage: The Upflow Design pushes water upward, preventing channeling and increasing contact time with the filter media. This is a key reason the system delivers its long 1,000,000-gallon lifespan over 10 years.
- 2-Stage/3-Stage Filters: Most competitors use a basic Downflow design, where gravity causes water to form channels in the media over time. This lets water bypass the filter, reducing performance and often requiring full media replacement every 3 to 5 years, increasing long-term costs.
The SpringWell 4-Stage system is a premium choice because it separates the functions to achieve superior, longer-lasting contaminant reduction. This ensures you receive consistent, high-quality water from every tap for a full decade, with only simple, annual sediment filter changes needed.
To see a direct comparison of how the SpringWell CF filter stacks up against other systems, check out this video: SpringWell vs Aquasana Whole House Water Filter. This video shows testing and analysis of the SpringWell CF filter, which helps visualize its performance advantages.
Comparison Table of 4-Stage vs. 2–3 Stage Water Filtration Systems
| System Feature | SpringWell 4-Stage Filter | Typical 2-Stage/3-Stage Filters |
| Media Layers | 4 dedicated stages (Sediment, KDF, Carbon, Upflow) | 2 or 3 combined stages, often just Sediment and GAC |
| Chlorine/Chloramine Removal | Dedicated KDF stage chemically neutralizes chlorine and chloramine before carbon | Carbon alone handles chlorine, reducing its lifespan quickly |
| Primary Carbon Type | Catalytic coconut shell carbon (high performance) | Granular activated carbon (GAC) has lower performance for difficult chemicals |
| Contaminant Focus | Specialized removal of chloramines, VOCs, and pesticides (after chlorine is removed) | General removal of chlorine and basic taste/odor |
| Flow Technology | ActivFlo Upflow design prevents channeling and increases contact time | Standard downflow design can cause channeling and reduce filtration efficiency |
| Media Lifespan | Up to 10 years (1,000,000 gallons), protected by KDF | Typically, 3 to 5 years due to faster chlorine saturation |
| Long-Term Value | Higher upfront cost but lower long-term maintenance | Lower upfront cost but higher long-term media replacement costs |
How Do You Determine if the SpringWell 4-Stage System Is Right for Your Home?
You can determine whether the SpringWell 4-Stage System is right for your home by comparing your water source, household size, and desired maintenance level with the system’s core capabilities.
The key things to consider when deciding on the 4-Stage System are the perfect fit for your home, including:
- Your Water Source Is Municipal (City) Water
The SpringWell CF (4-Stage) system is designed for city water. Municipal supplies contain disinfectants like chlorine and chloramines, which the KDF and catalytic carbon are built to remove. This system is not suitable for well water. SpringWell offers a separate model for well water.
- You Want the Longest Lifespan Possible
This system is made for low-maintenance use. It delivers up to 1,000,000 gallons, enough for most homes for about 10 years. The only routine task is replacing the small sediment pre-filter every 6 to 9 months, avoiding the frequent media changes needed with smaller filters.
- You Notice Chlorine Taste or Smell
If you smell chlorine in the shower or taste it in your drinking water, this system fixes it. It removes chlorine and chloramines very effectively, improving taste and smell across every tap in your home.
- You Need a High Water Flow Rate
Homes with multiple bathrooms or appliances running simultaneously benefit from SpringWell CF’s high flow rates. With models ranging from 9 to 17+ GPM, you run multiple fixtures without losing noticeable water pressure.
- You Are Prepared for the Upfront Cost
The SpringWell 4-Stage is a premium system, so the initial cost is higher than that of basic filters. However, its long lifespan and low maintenance make it a strong long-term investment.
- Your Water Does Not Have High Levels of Iron or Bacteria
While excellent for removing chemicals, this system is not intended for very high levels of iron, manganese, or bacterial contamination. If your water test shows elevated levels, you may need add-ons like a UV light or an iron filter.
Choosing the right filtration system is a major decision for your family’s health and home maintenance. If you still have questions about flow rates, contaminant removal, or choosing the right system, Water Filter Way provides in-depth guides, side-by-side comparisons, expert system and brand reviews, and unbiased insights based on real-world testing, helping you confidently find the best water filtration solution for your home.
How do I decide between the CF1, CF4, and CF+ models?
You should decide between the CF1, CF4, and CF+ models based on the number of bathrooms in your home. The CF1 is for 1-3 bathrooms (9 GPM), the CF4 is for 4-6 bathrooms (12 GPM), and the CF+ is for 7+ bathrooms (17+ GPM). Choosing the correct GPM prevents low water pressure.
What happens after the 10-year lifespan of the main media is up?
After the 10-year or 1,000,000-gallon lifespan of the main is up, you have to replace the media inside the main tank. SpringWell sells replacement media that you can easily install yourself or have a plumber install.
Will the 4-Stage system remove fluoride from my water?
No. The SpringWell 4-Stage system does not specifically target and remove fluoride from your water. Fluoride removal requires an additional system, typically a dedicated Reverse Osmosis (RO) system at the kitchen sink.
Can I install the SpringWell 4-Stage system outside?
Yes, you can install the system outside only if you live in a location where the temperature never drops below freezing. In case cold temperatures are a risk, you must use a neoprene insulating jacket and house the system in a protective enclosure.
What is the difference between the 4-stage filter and water softener systems?
The difference between the 4-stage filter and water softener systems lies in their operation. The 4-stage filter (CF Series) is designed for purification. It removes chemicals and contaminants. SpringWell water softener systems (like the SS1 or FutureSoft®) are designed to remove hard minerals (calcium and magnesium) that cause scale buildup. You need both for the best water quality.
Does the 4-Stage filter remove beneficial minerals from the water?
No, the 4-stage filter does not remove beneficial minerals from the water. The catalytic carbon and KDF media are designed to chemically remove contaminants and chlorine. They allow healthy, naturally occurring minerals like calcium and magnesium to pass through, keeping the water naturally refreshing.
How does the well water system differ from the 4-Stage city water system?
The well water system differs from the 4-stage city water system because they target different contaminants. The SpringWell WS Whole House Well Water System uses Air Injection Oxidation (AIO) and greensand media to remove high levels of natural contaminants, such as iron, manganese, and sulfur (rotten-egg smell). The 4-stage system (CF series) uses KDF and carbon to remove added chemicals, such as chlorine and chloramines, from municipal water.
Does SpringWell offer an all-in-one system that filters and softeners?
Yes. SpringWell offers an all-in-one system that filters and softeners. The combination systems pair a whole-house filter with either a salt-based softener or a salt-free conditioner, providing both chemical purification and scale prevention in a single package.
Are there any conditions that void the SpringWell warranty?
Yes. Some conditions void the SpringWell warranty. Failure to follow the installation instructions, failure to replace the sediment filter, damage from freezing (improper outdoor installation), or installing the system on water quality that exceeds the recommended specifications (such as high iron in a city system) can void the warranty.
How do I pick the right SpringWell System for me?
You can pick the right SpringWell system for yourself by first identifying your water source and contaminants. Choose the 4-stage CF filter if you have city water with chlorine. You need the WS Whole House Well Water System if you have well water with high iron or sulfur. A water test confirms the correct model size.
